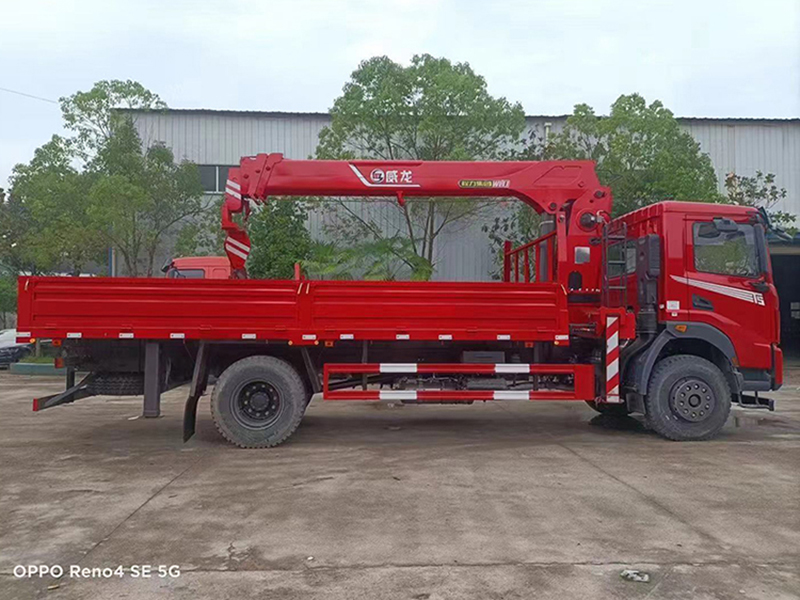

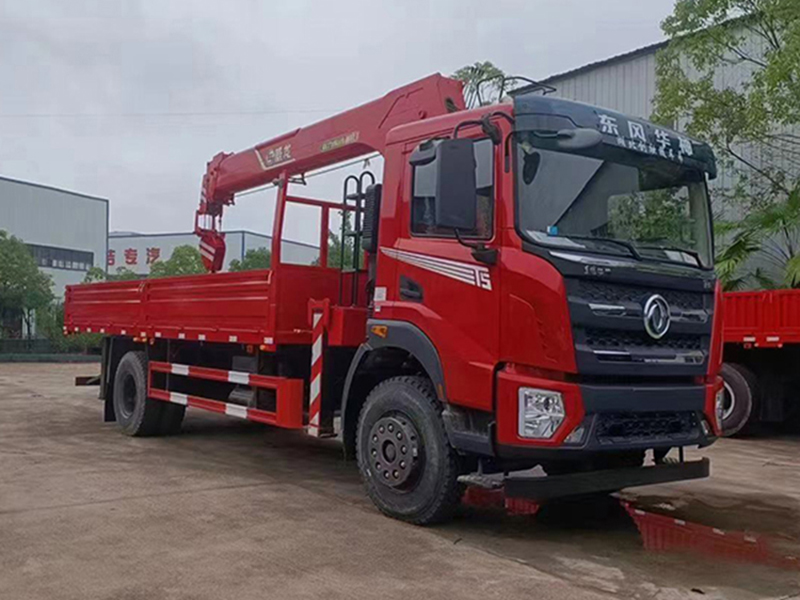

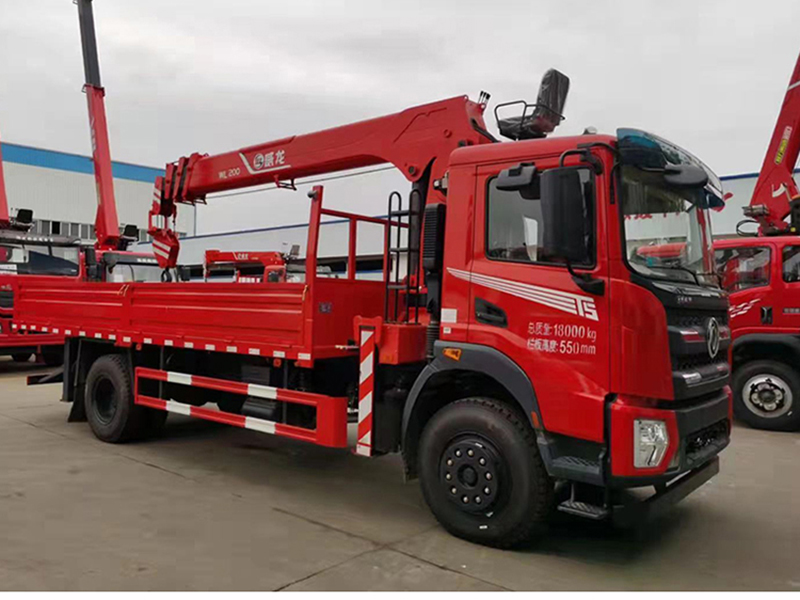

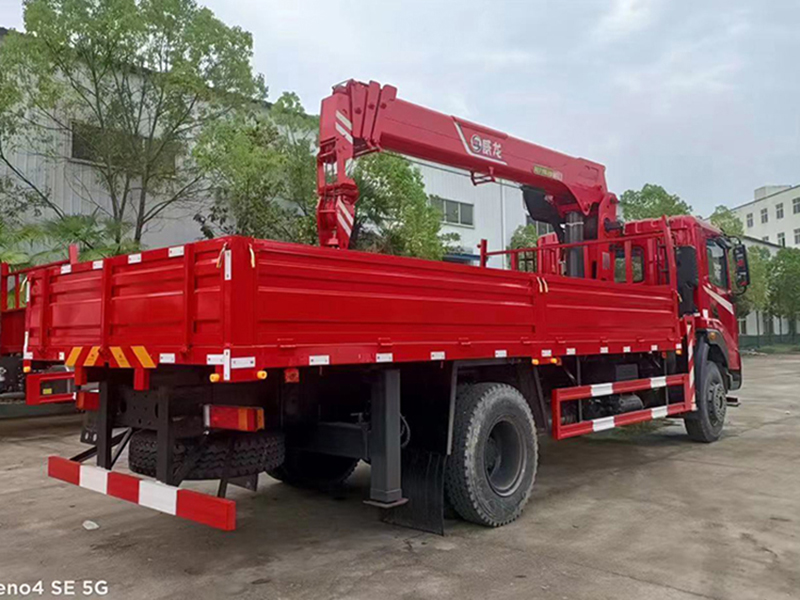

Dongfeng DV5 8tons 10tons Crane Truck Crane Vehicle Crane Mounted on Truck

A truck mounted crane generally consists of a cargo truck chassis, cargo compartment, power take-off, crane, and support legs. The chassis of the special vehicle for crane can be selected from Dongfeng, Jiefang, Dayun, Shaanxi Automobile, Heavy Duty Truck, etc. Commonly used cranes can be divided into XCMG cranes, Sany cranes, stone coal cranes, Hongchang Tianma cranes, etc. according to manufacturers. They can be classified into straight arm and folding arm cranes according to crane types, and into 2 tons, 3.2 tons, 5 tons, 6.3 tons, 8 tons, 10 tons, 12 tons, 16 tons, and 20 tons according to tonnage.

Inquiry now

Crane truck, the full name is truck-mounted lifting transport vehicle.
In some places Also known as car crane, self-crane and so on. It is a kind of equipment that integrates hoisting and transportation, and realizes the lifting, turning, and hoisting of goods through hydraulic lifting and telescopic systems.

1.the truck crane is widely used in port, workshop, construction site and other places lifting and handling machinery and also in lifting equipment, rescue,etc.

2.the truck crane adopts the famous brand of chassis,which has good mobility, high reliability and convenient after-sale service.

3.The design of the whole crane is more reasonable than other kinds of cranes, saving raw materials and meeting performance requirements.

4.New type cab, adjustable suspension seat, air motive shed, electron-hydraulic proportional handle and the push-button control,large color display and new dashboard, electric control outrigger, electric control engine, electric control hydraulic torque converter gearbox, brake steering drive axle, easy and safe to operate.

Vehicle Description	Brand
	GVW(kg)	18000
	Curb Weight(kg)	11500
	Loading Weight(kg)	6370
	Overall Dimension(mm)	900025503650
	Wheelbase(mm)	5100
	Axle Load(kg)	5000/10000
	Top Speed(km/h)	89

Chassis Brand		DongFeng
Chassis Model		EQ1253GSZ6DJ
Cabin		Single,LHD,with A/C
Engine	Model	YuChai YCS04200-68
	HP	200
	Emission Standard	Eu 3/6
	Displacement/Output(ml/kw)	4160/147
	Fuel Type	Diesel
	Rate Speed(rpm)	2300
	Maximum Torque(N·m)	720
	Maximum Torque Speed(rpm)	1200-1600
Gearbox Brand		Fast
Gearbox		8Forward/1Reverse Gear
Tyre		11.00R20 18PR

Crane	Crane Model	GSQS250-5
	Max. lifting moment(kN·m)	260
	Max lifting capacity(kg)	11000
	Max hydaulic outreach(m)	18.6
	Slewing angle(°)	360
	Stabilizer spread(mm)	2480-6070/2338-7443
	Installation space(mm)	1200
	Max operating pressure(MPa)	26
	Recommended pump capacity(L/min)	63+50
	Oil tank capacity(L)	200
	Dead weight(kg)	single outrigger 4150/Double outrigger 4400
